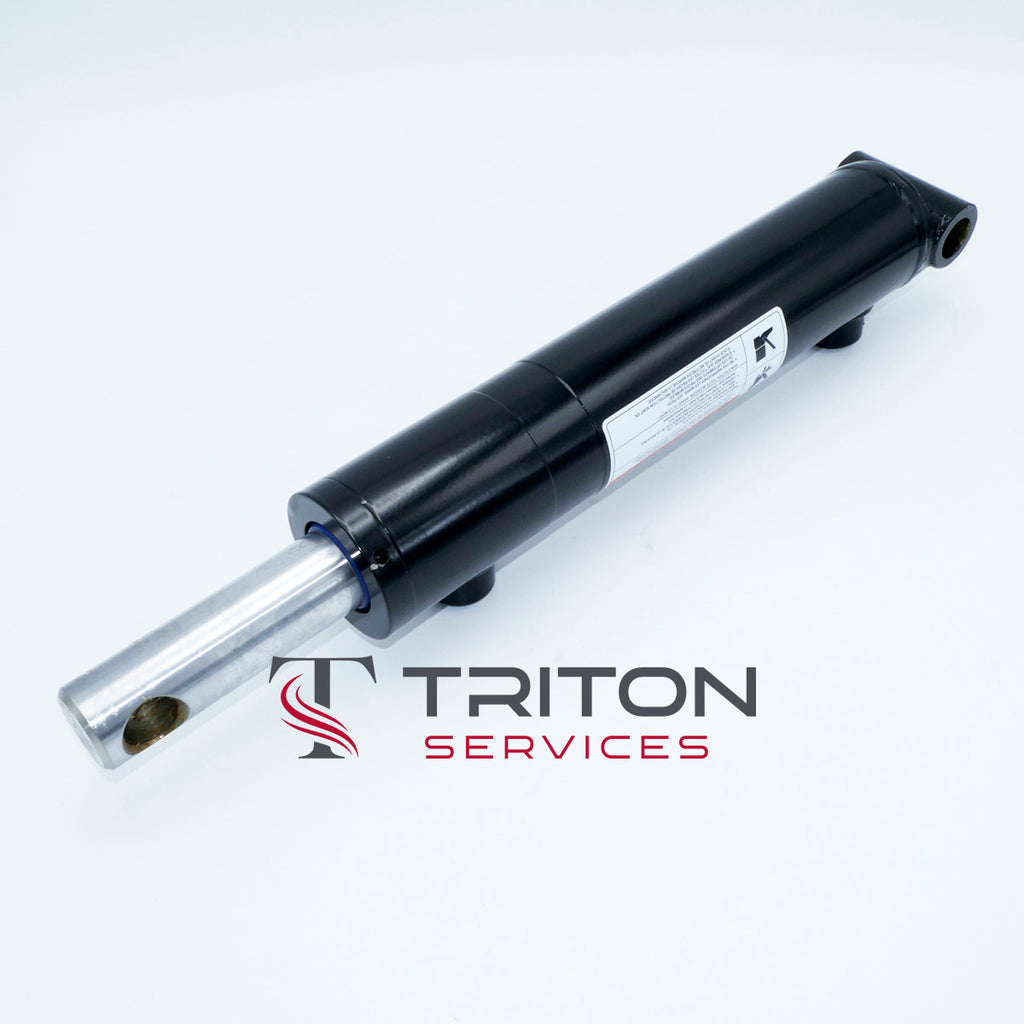

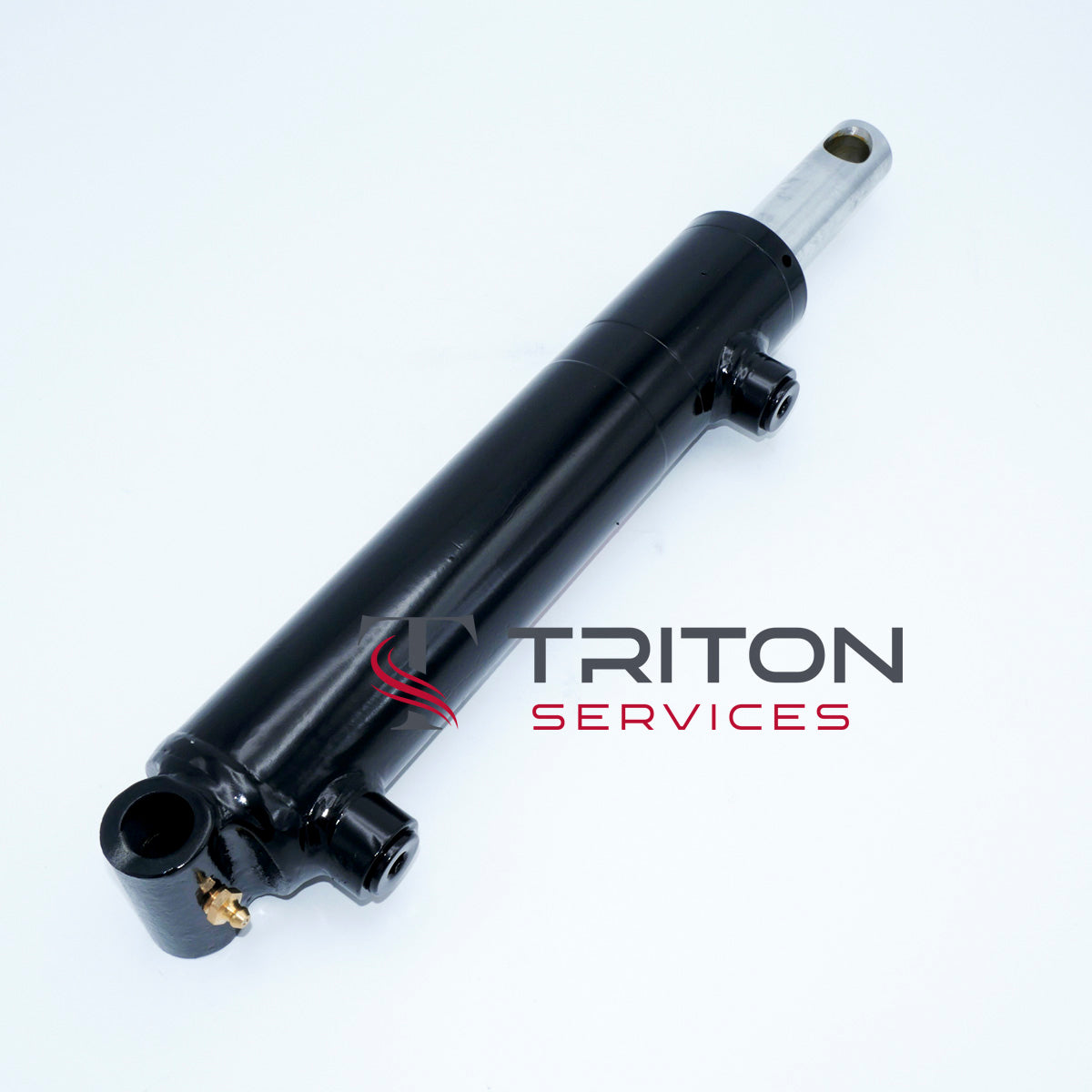

The TWPH-2016 hydraulic cylinder has been specifically designed with the same dimensions as Surplus Center 9-7707-16 and Bailey 287211, but with the added feature of a wearband on the piston. This double acting cylinder has a 2.0" bore, a 1.25" rod, and a 16" stroke, with a retracted pin to pin length of 24". The SAE -8 ports are located on the blind end crosstube, which measures 2.5" wide and features a .765" hole. The rod also has a .765" pinhole.

• 2.0" bore
• 1.25" rod
• 16" stroke
• 24" pin to pin length while retracted
• SAE -8 ports

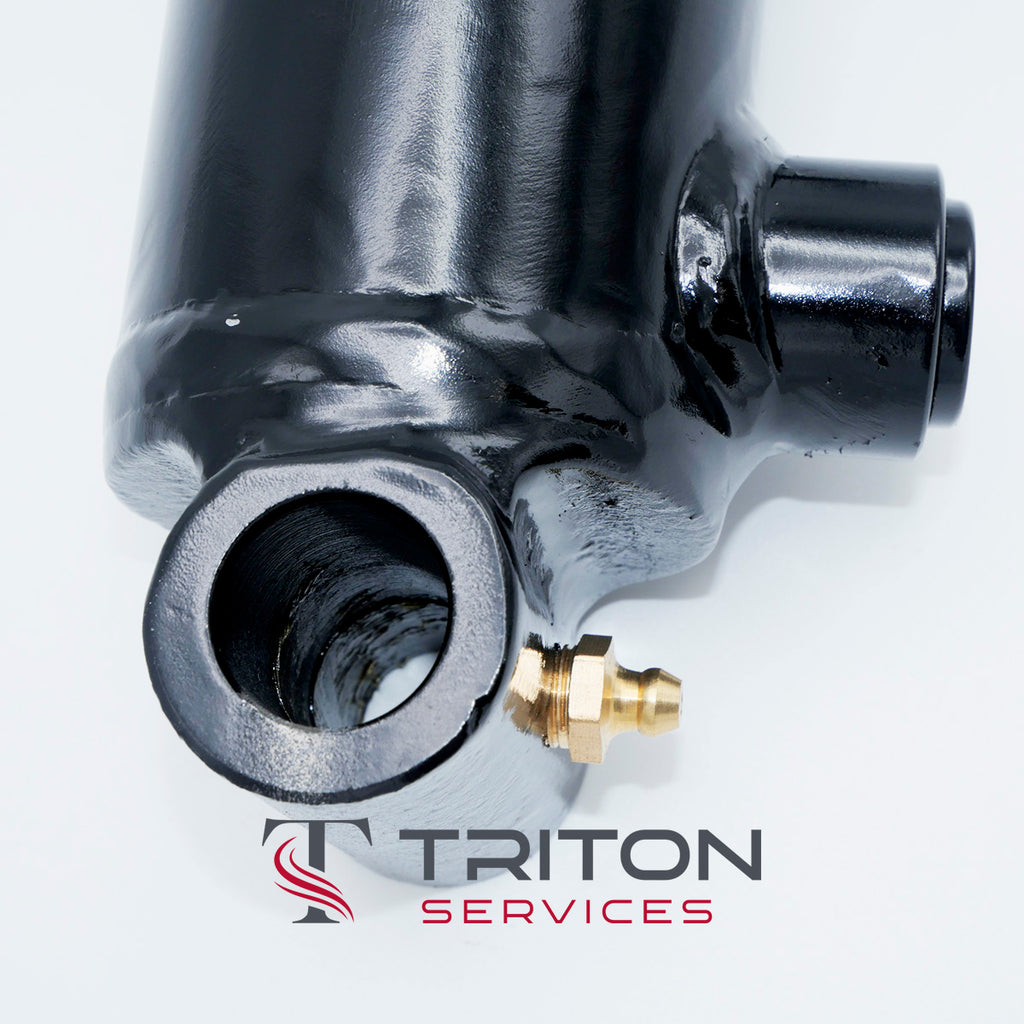

• Blind end crosstube that is 2.5" wide with .765" hole

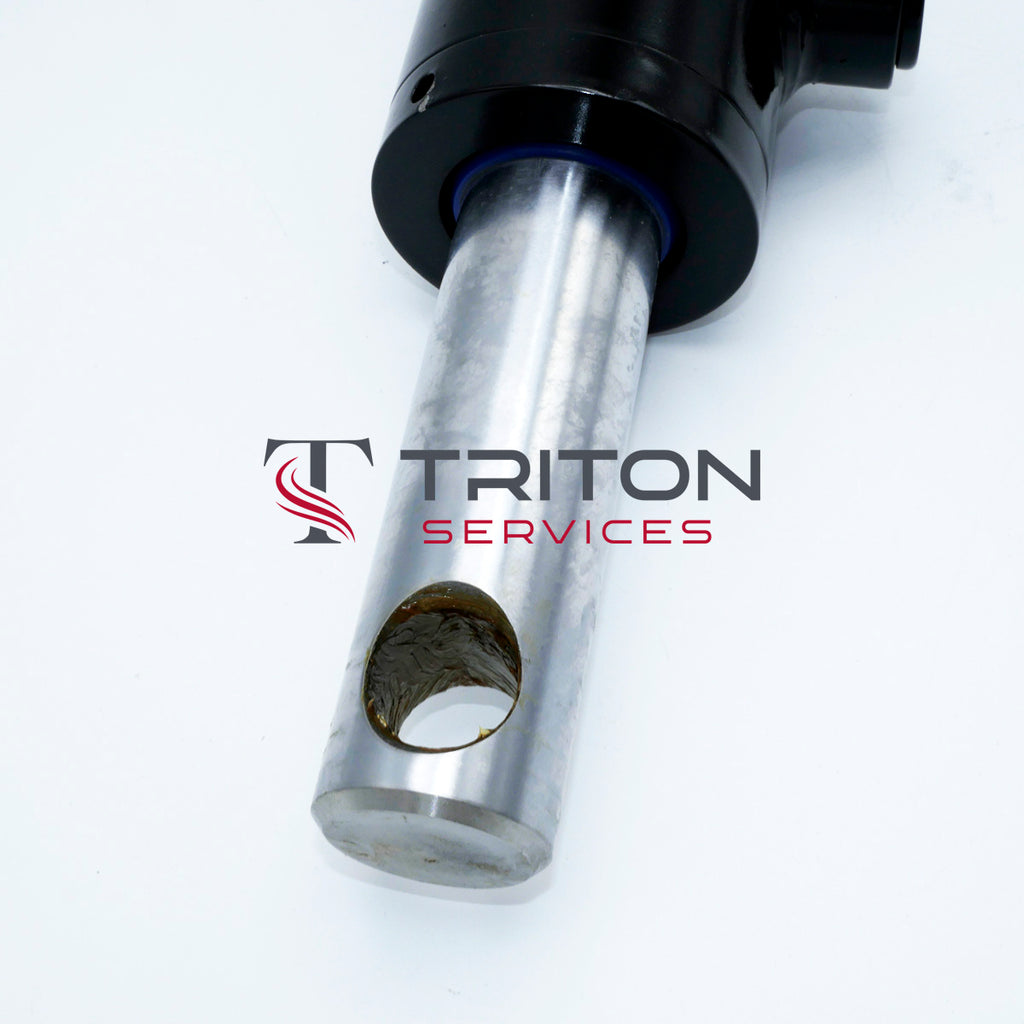

• Rod .765" pinhole
