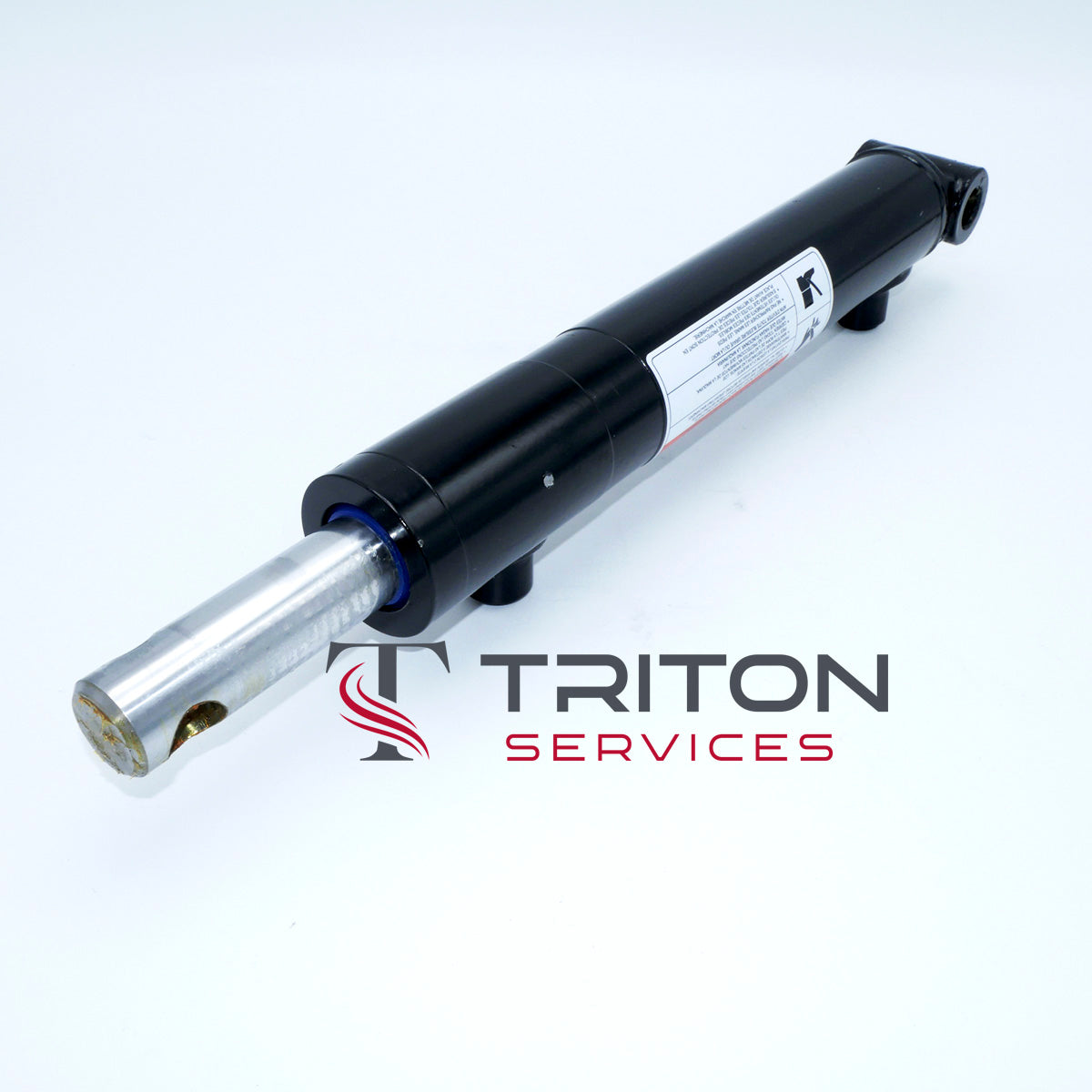

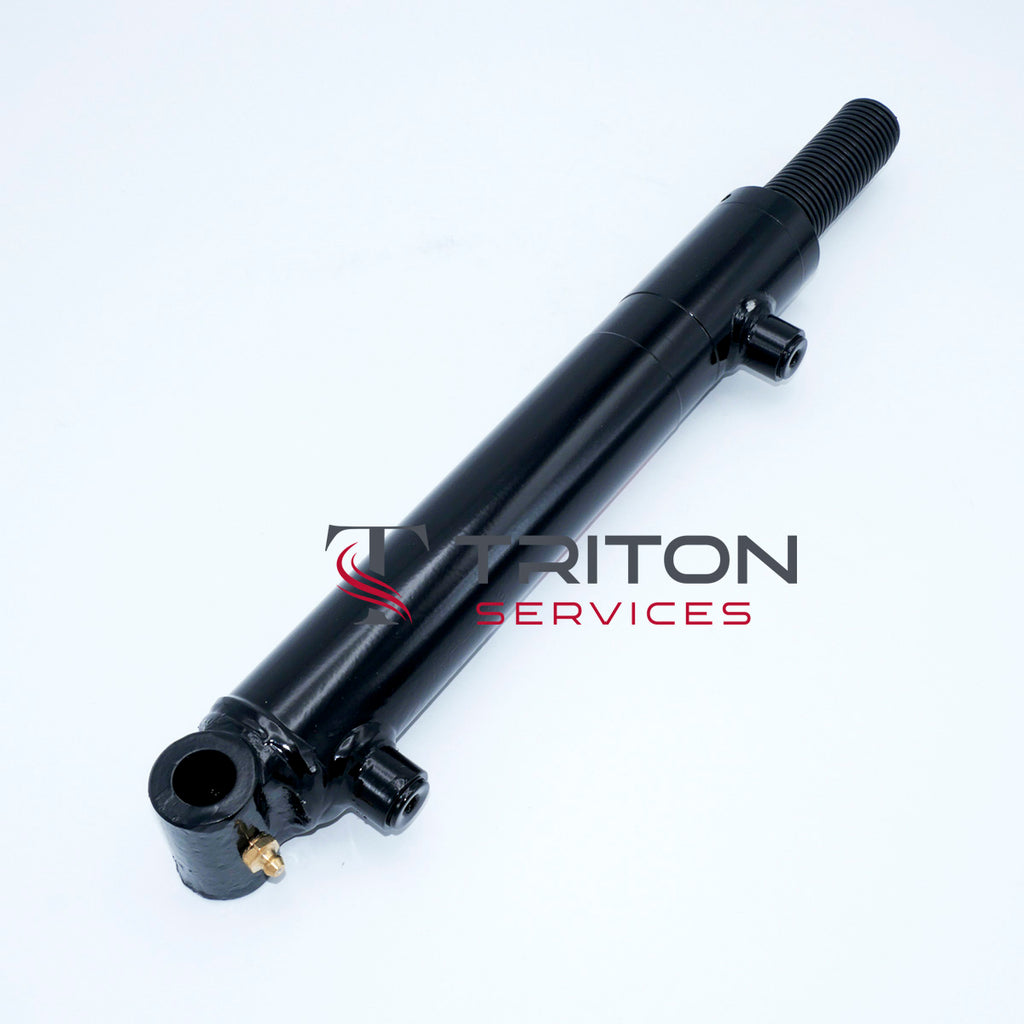

The TWPH-1510 1.5x10x1 Double Acting Hydraulic Cylinder is designed according to Surplus Center 9-7706-10 and Bailey 287203 specifications, with the addition of a wearband on the piston for increased durability. Its dimensions include a 1.5" bore, 1" rod, and 10" stroke, with a 17" pin to pin length when retracted. The cylinder also features SAE -6 ports and a 2" wide crosstube with a .64" hole for easy installation. The rod is also equipped with a .64" pinhole for secure attachment.

TWPH-1510 1.5x10x1 Double Acting Hydraulic Cylinder Pinhole

• 1.5" bore
• 1" rod
• 10" stroke
• 17" pin to pin length while retracted
• SAE -6 ports

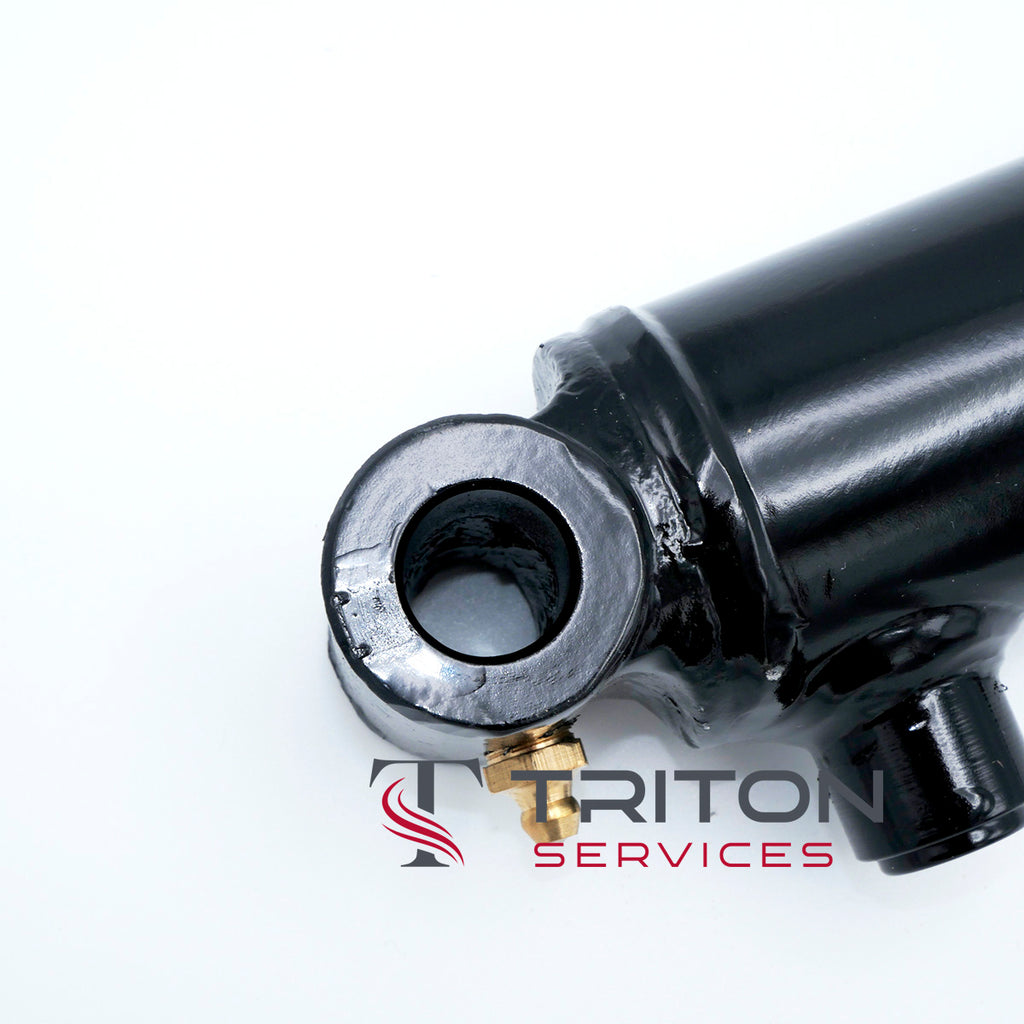

• Blind end crosstube that is 2" wide with .64" hole

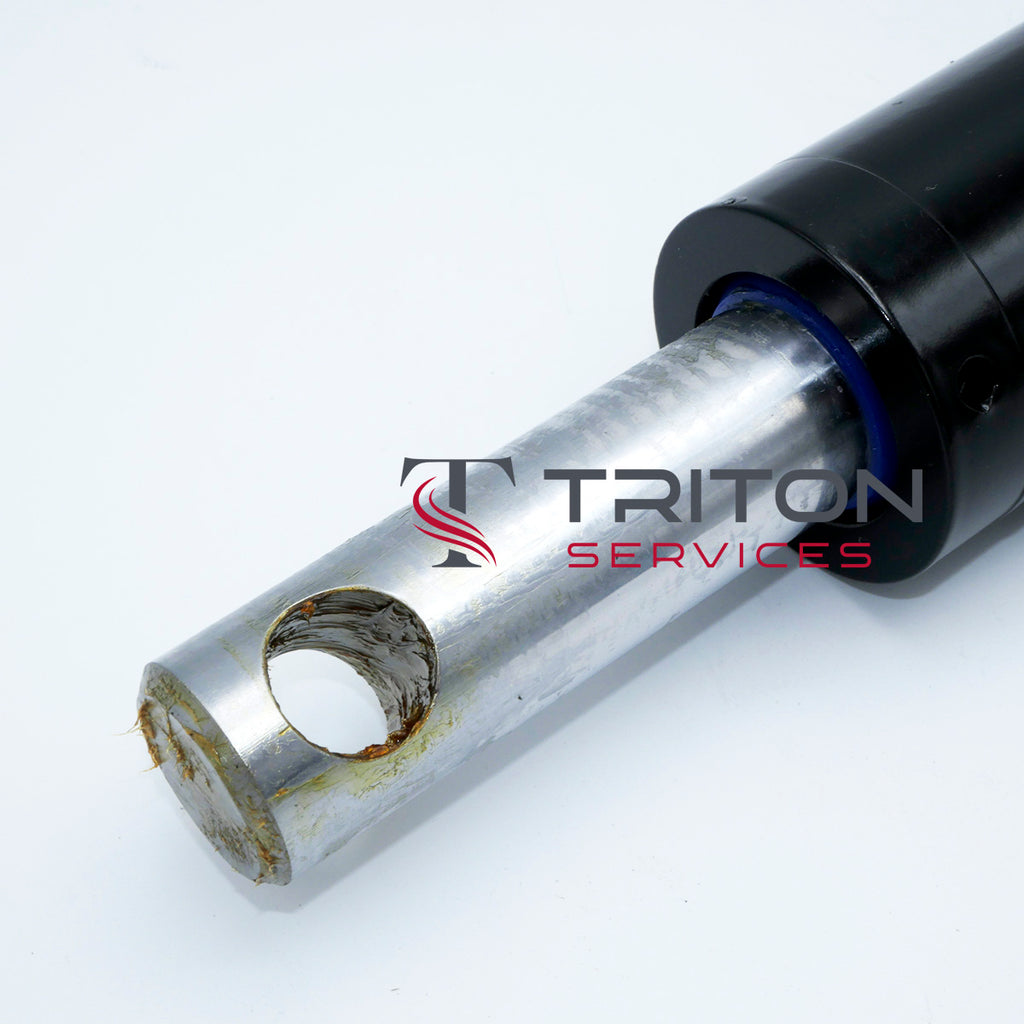

• Rod .64" pinhole
