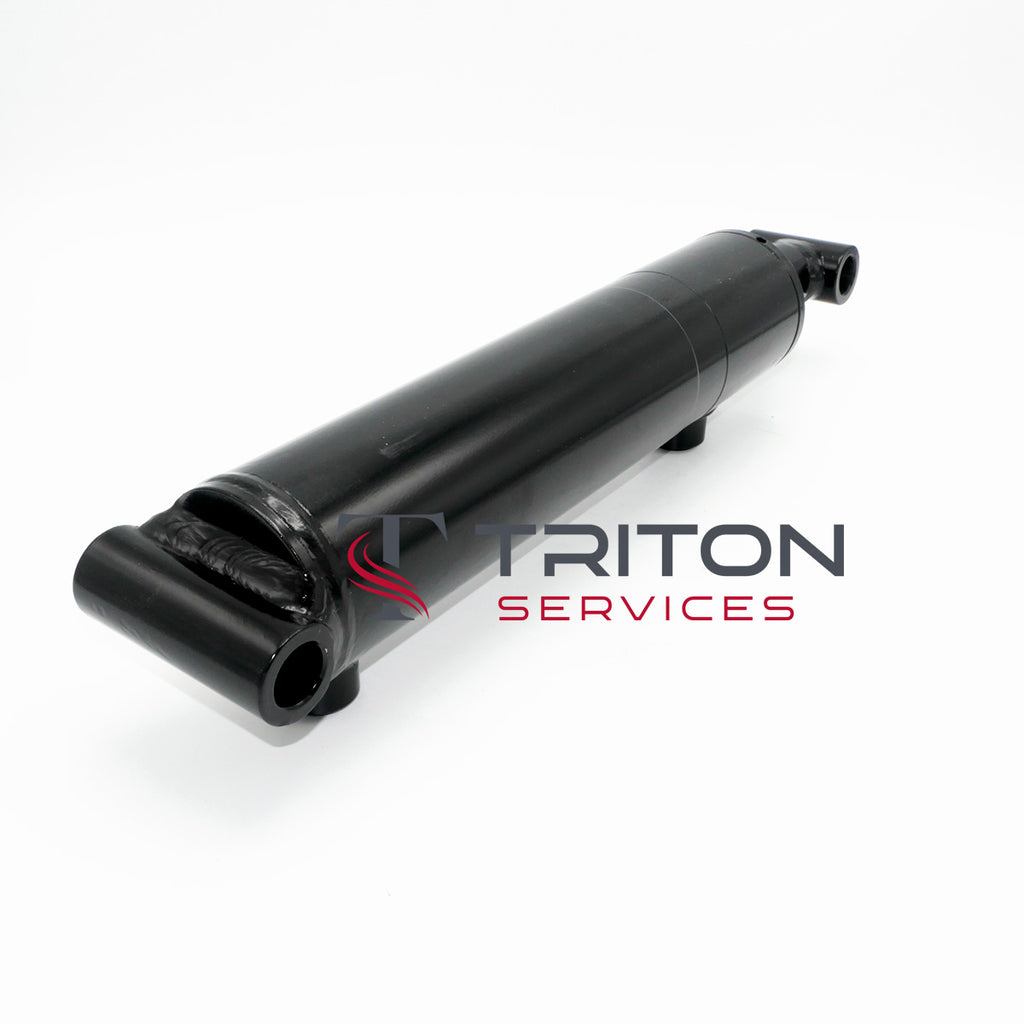

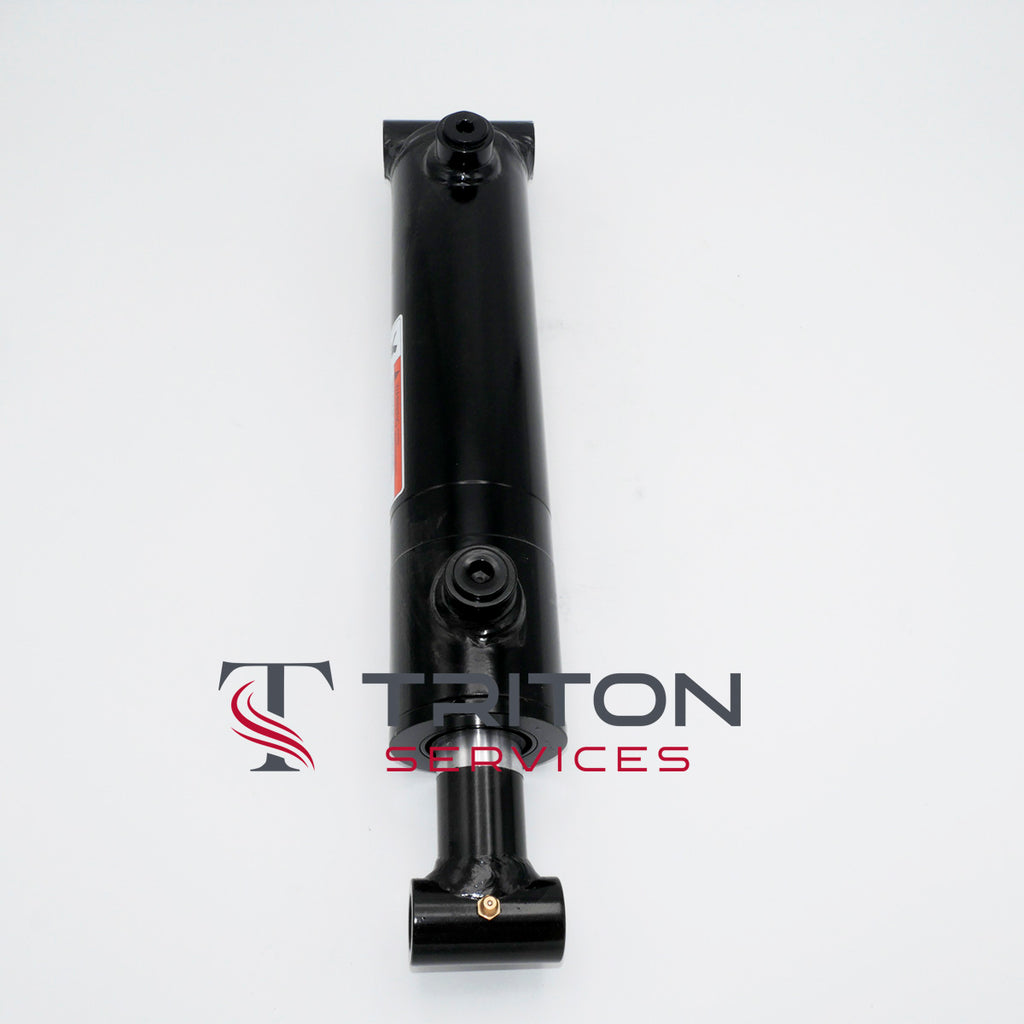

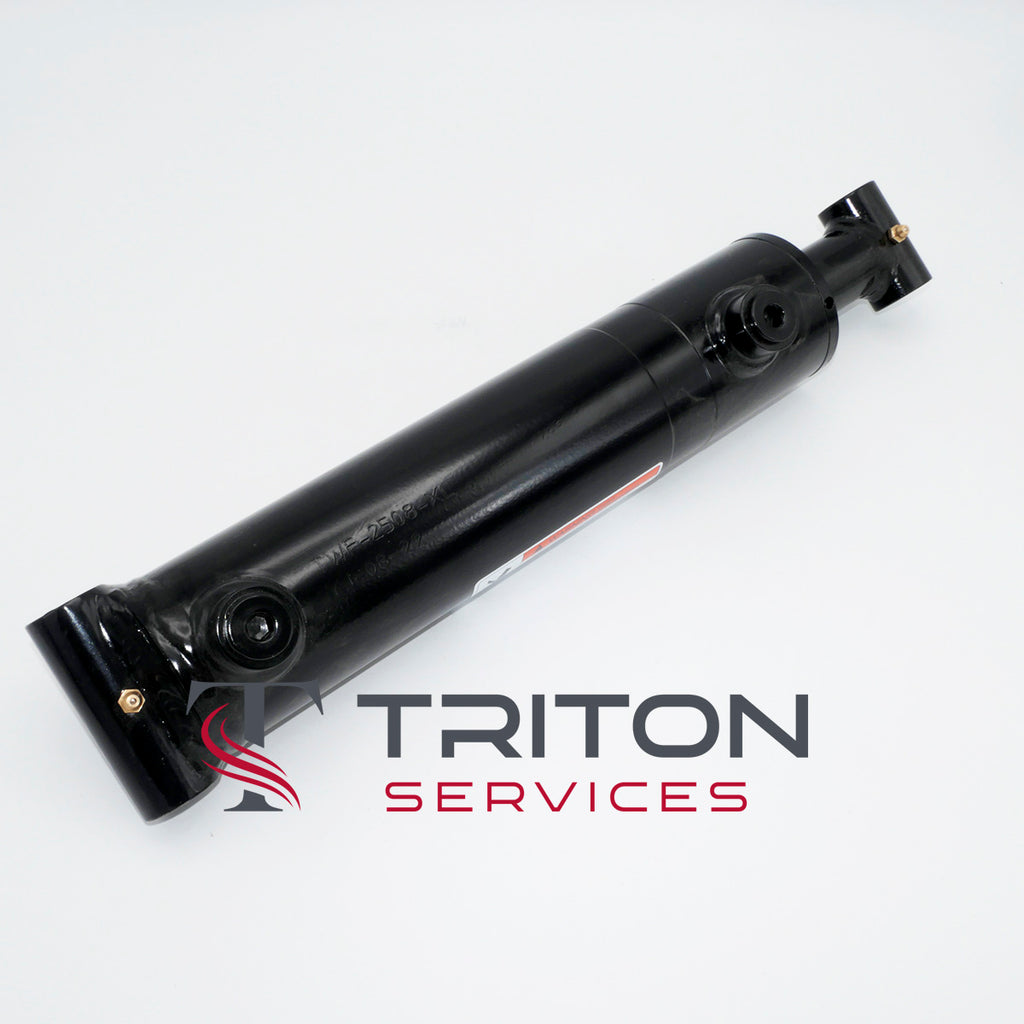

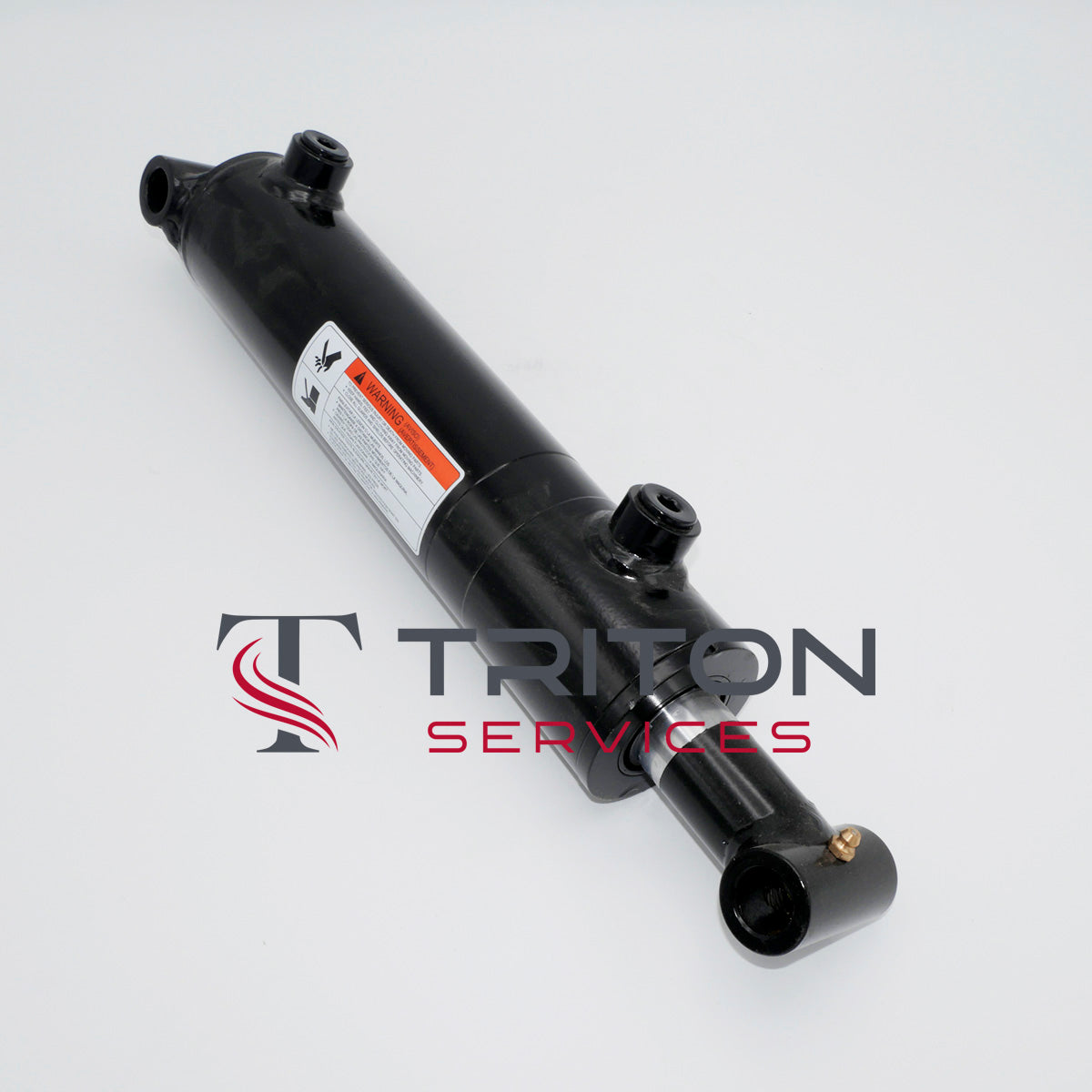

Expertly designed and engineered, the TWF-2508-XL Hydraulic Cylinder boasts precise dimensions to Prince SAE-62508 & Bailey 212248 specifications. It also features a durable wearband on the piston and rod gland for optimal performance. With a bore size of 2.5", a rod diameter of 1.375", and a generous stroke length of 8", this cylinder has an overall pin-to-pin measurement of 16" when retracted and SAE -8 ports. The BE crosstube is 3.25" wide with a .765" pin hole, while the RE crosstube is 2.25" wide with the same .765" pin hole.

• TWF-2508-XL 2.5x8x1.37 Hydraulic Cylinder
  • 2.5" bore
  • 1.375" rob
  • 8" stroke
  • 16" overall pin to pin length retracted
  • SAE -8 ports
  • BE crosstube is 3.25" wide with .765" pin hole
  • RE crosstube is 2.25" wide with .765" pin hole
